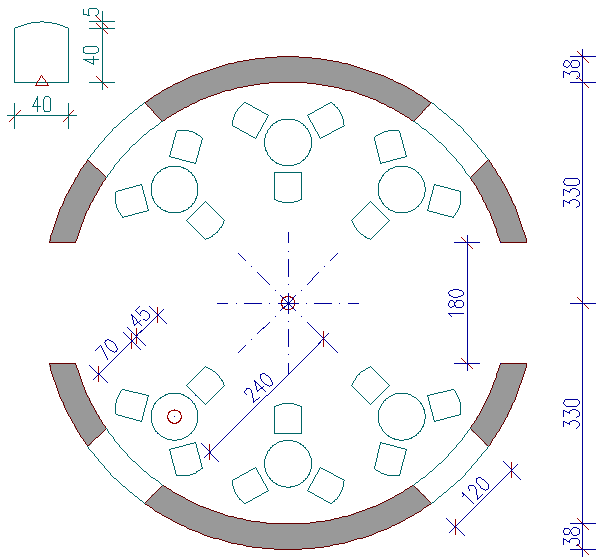

Create the plan shown on the figure, strictly following the procedure written below.

• As always, it is strongly suggested to use the Acad-Hu template!
• Using exact sizes and placements and deleting unnecessary elements is essential.

 2D PLAN…

• Use meter as (model space) drawing unit.
• Create the following layers, using the given colors:
  • Dimensions – color magenta,
  • Fill – color 252 (grey),
  • Furniture – color green,
  • ThinLines – color cyan,
  • Walls – color red.
• All elements should be placed on the appropriate layer.

 BLOCK…

• Define a block called chair with the given geometry:
• use the midpoint marked with a triangle as the block's insertion point,
• all lines of the block should be located on its insertion layer,
• the color of the inserted blocks should be changeable.
• Define a block called table with the given geometry:
• the block should consist of a circle, and three chair blocks,
• use the center point of the circle of the table as the block's insertion point,
• all elements of the block should be located on its insertion layer,
• the color of the inserted blocks should be changeable.

 PAPERSPACE…

• Set up an A4 size paper with portrait orientation.
• Create a Viewport showing the plan in 1:50 scale.
• Create a second Viewport for the plan without showing the Dimensions and Furniture layers in 1:200 scale.
