Constructive CAD C • AutoCAD

  BMEEPAG0243elective course2009-10-1

Philip Matovu


Simple Model

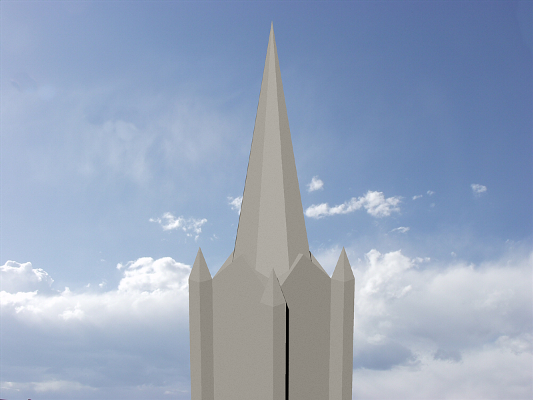

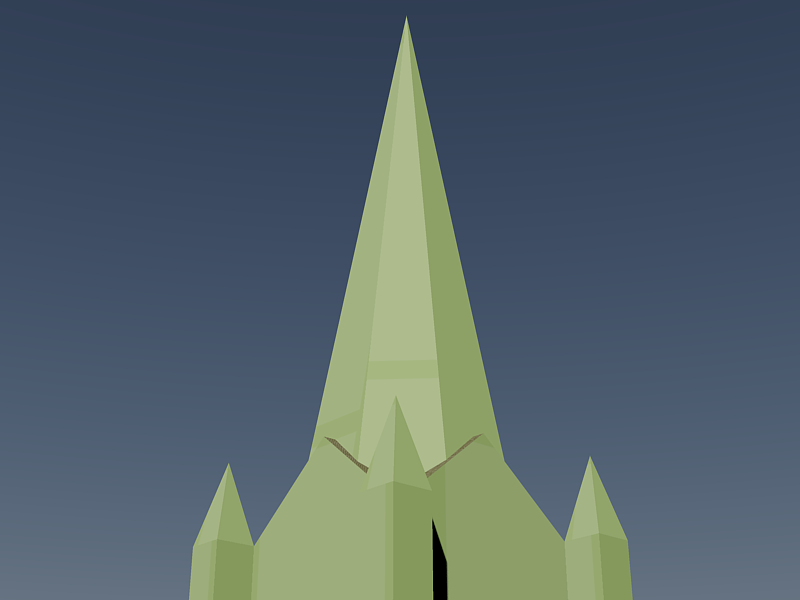

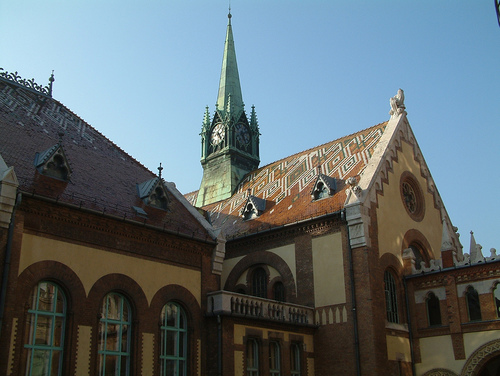

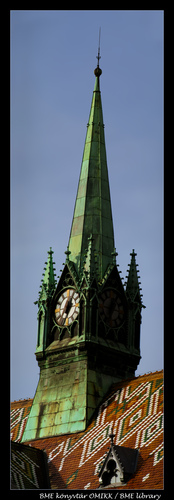

This is a simple model of the steeple on the roof of the library at Budapest University of Technology and Economics.

Pictures



Complex Model

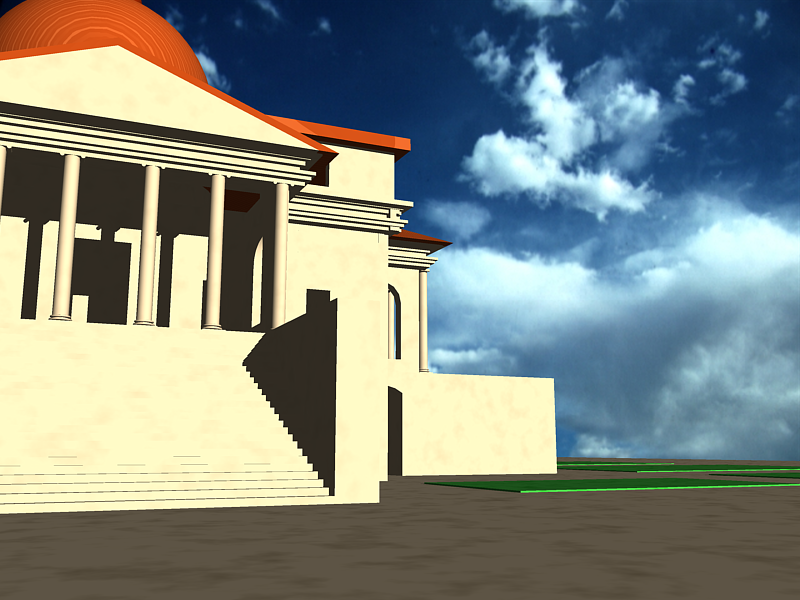

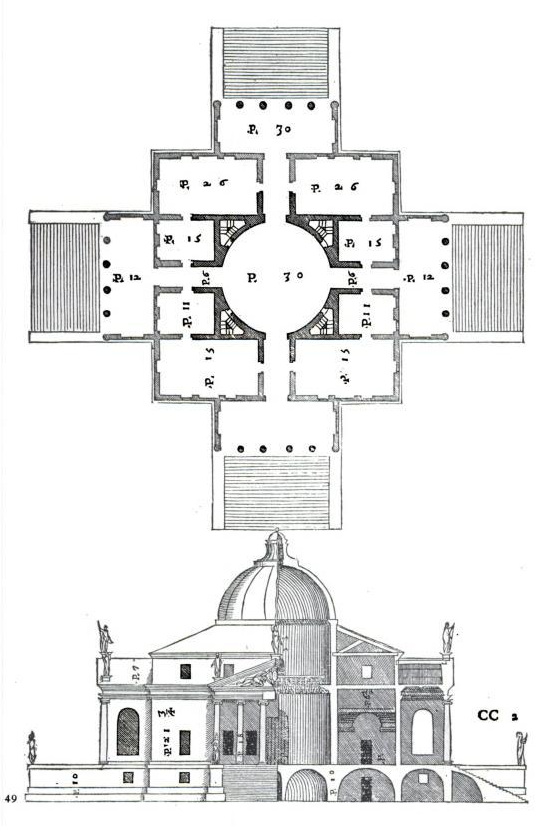

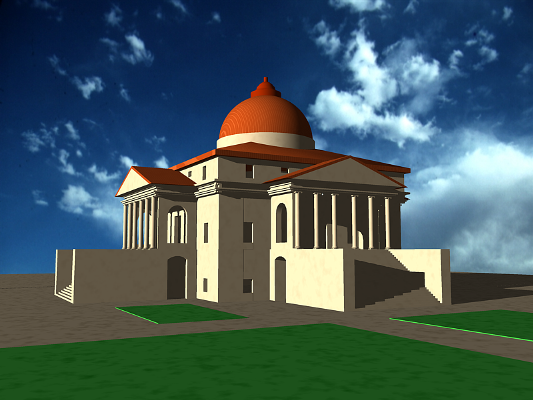

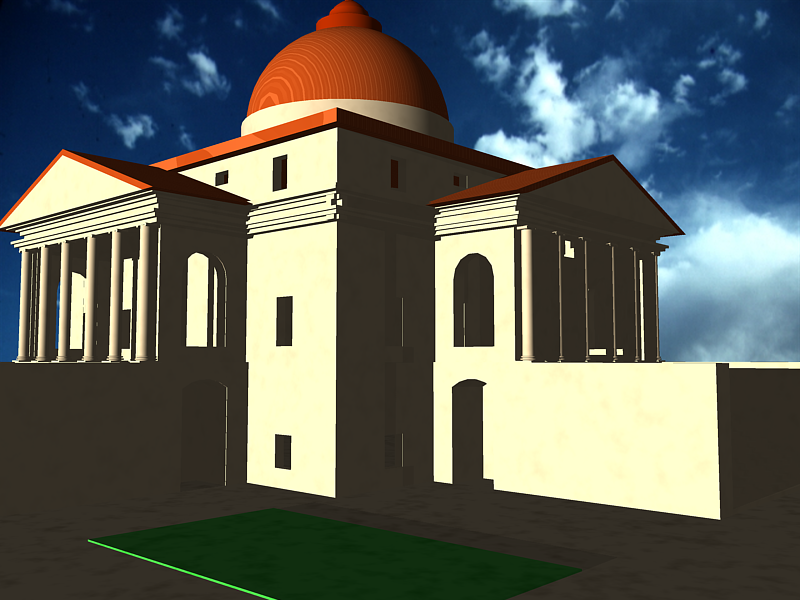

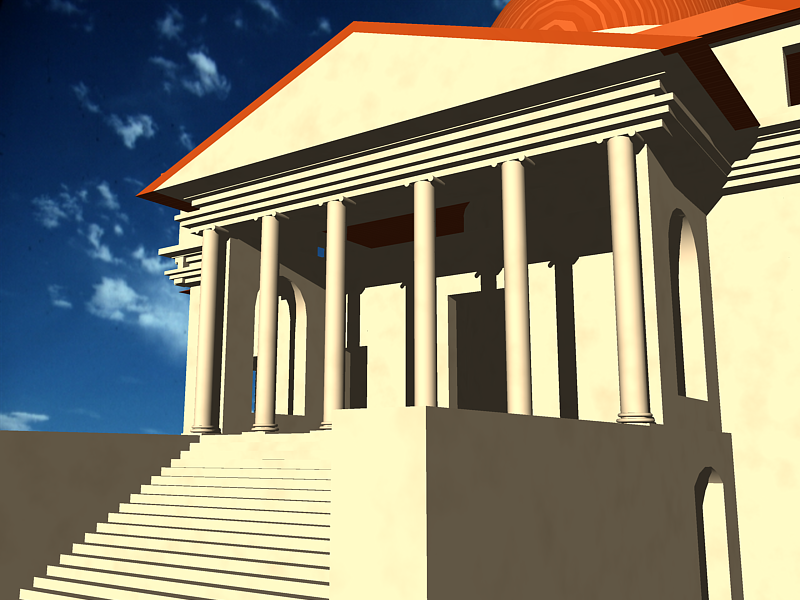

This is a model of the Villa Capra also known as "La Rotonda". It is a Renaissance villa just outside Vicenza, northern Italy, designed by Andrea Palladio.The model is made according to the original drawing by Palladio in which some differences from the actual building may be noticed ,for example; the shape of the dome . .

Pictures
