Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2022-23-2

Redoules Coralie


[PICTURE]

Simple Model

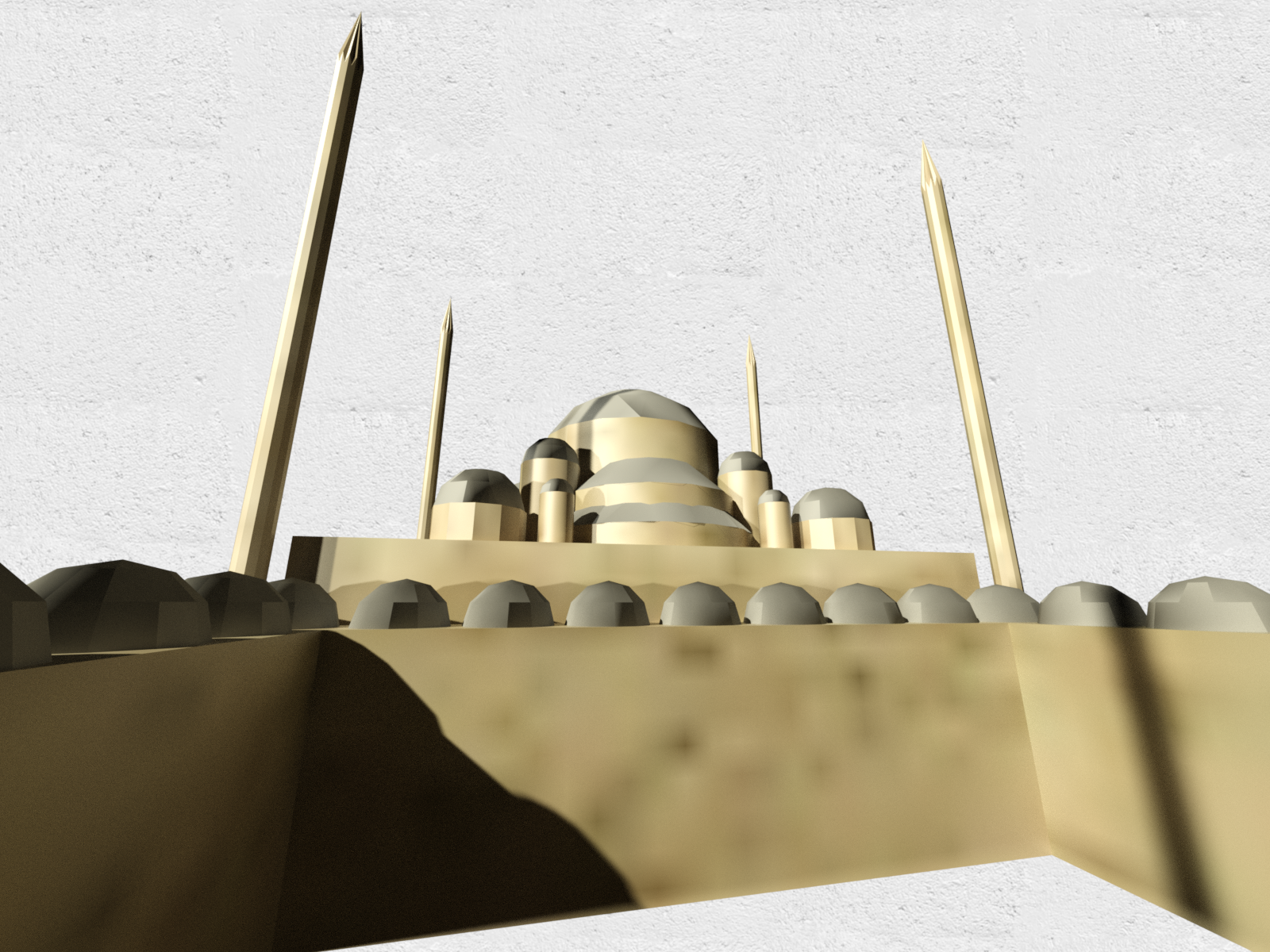

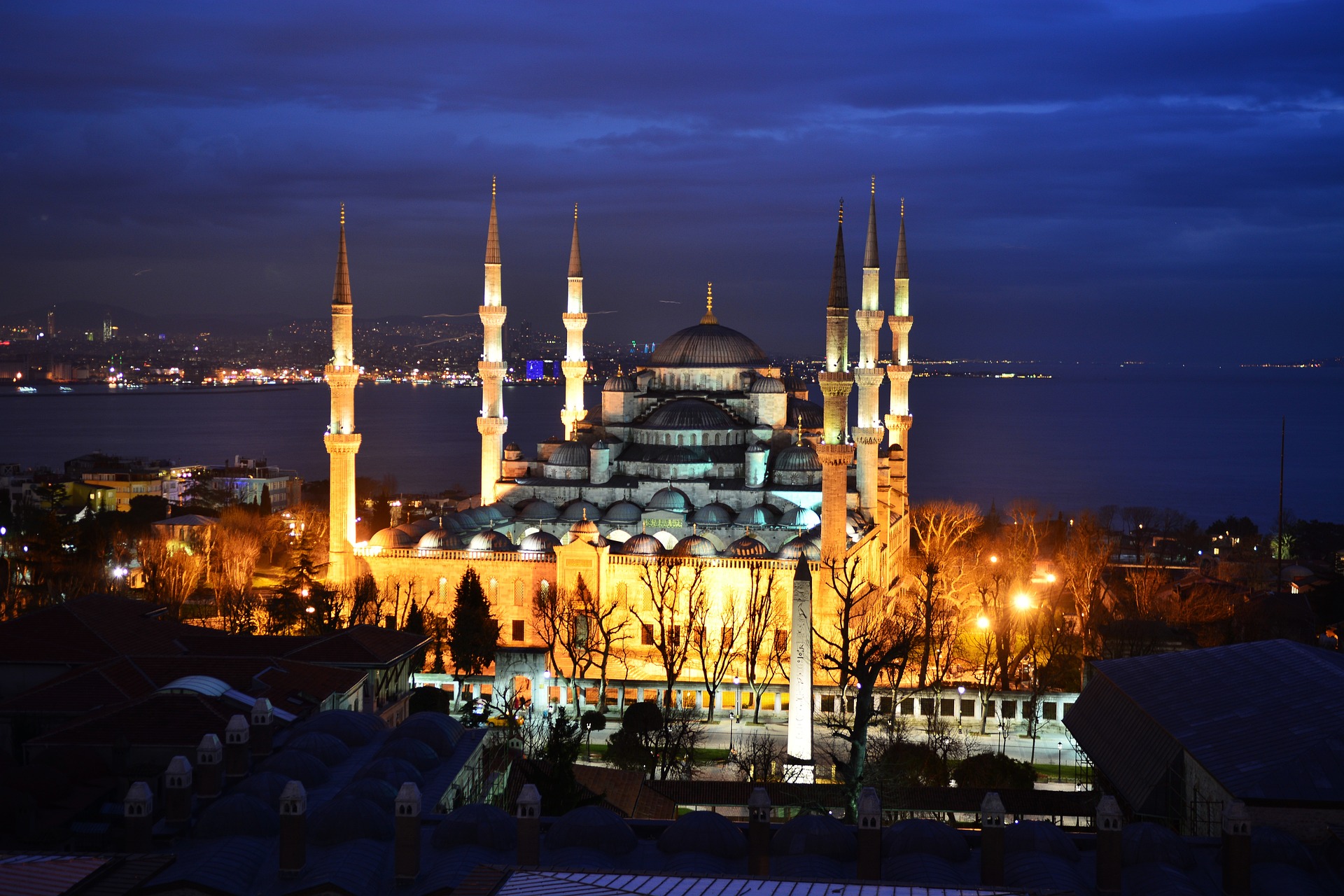

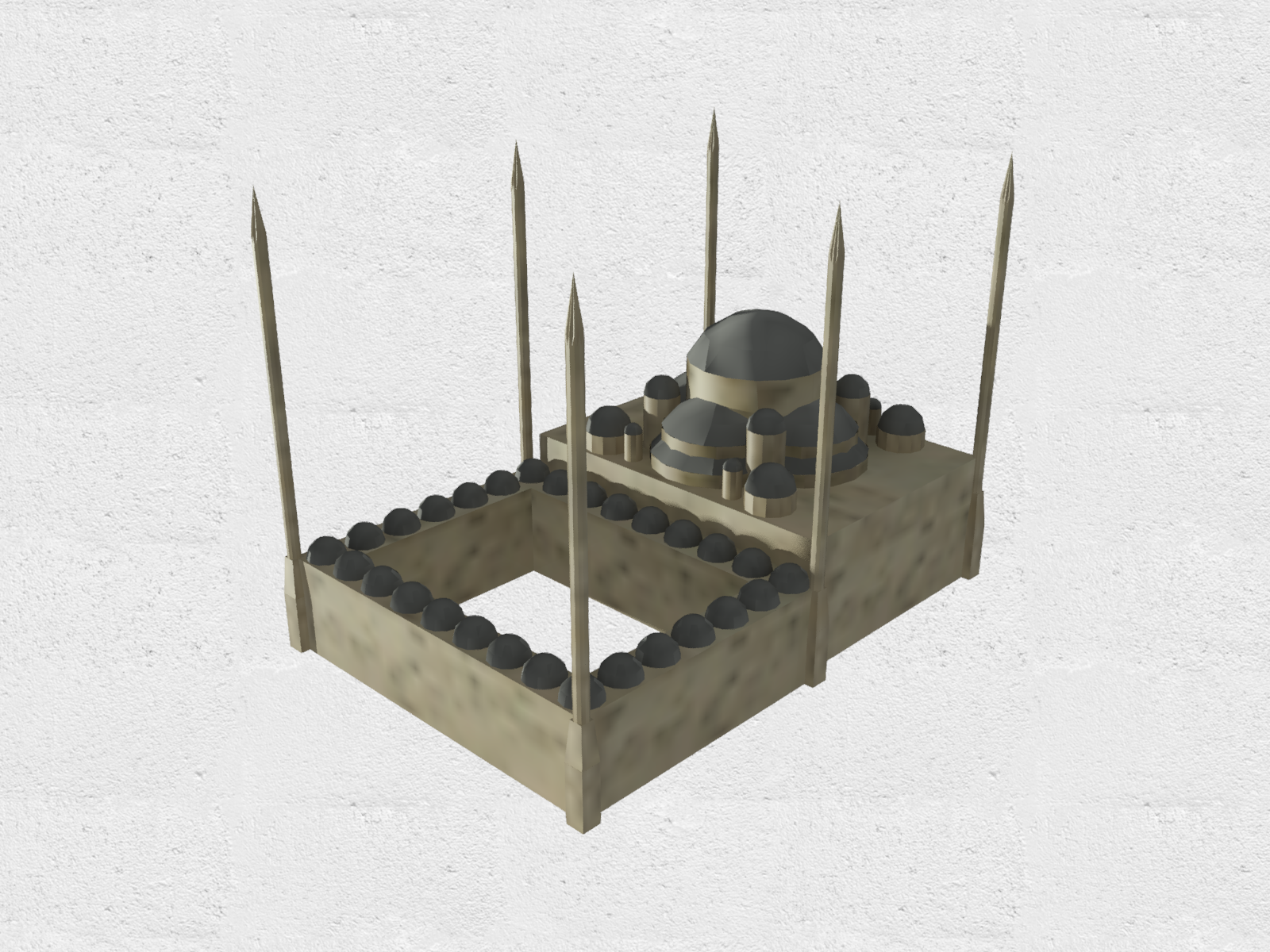

The Blue Mosque in Istanbul (Sultanahmet Camii) was built in the 17th century. It is one of the buildings that marked me the most during my trip to Istanbul. The modeling of this mosque is interesting thanks to its domes, which allow the use of spheres.

Pictures

[PICTURE]  [PICTURE]

[PICTURE] [PICTURE]

Complex Model

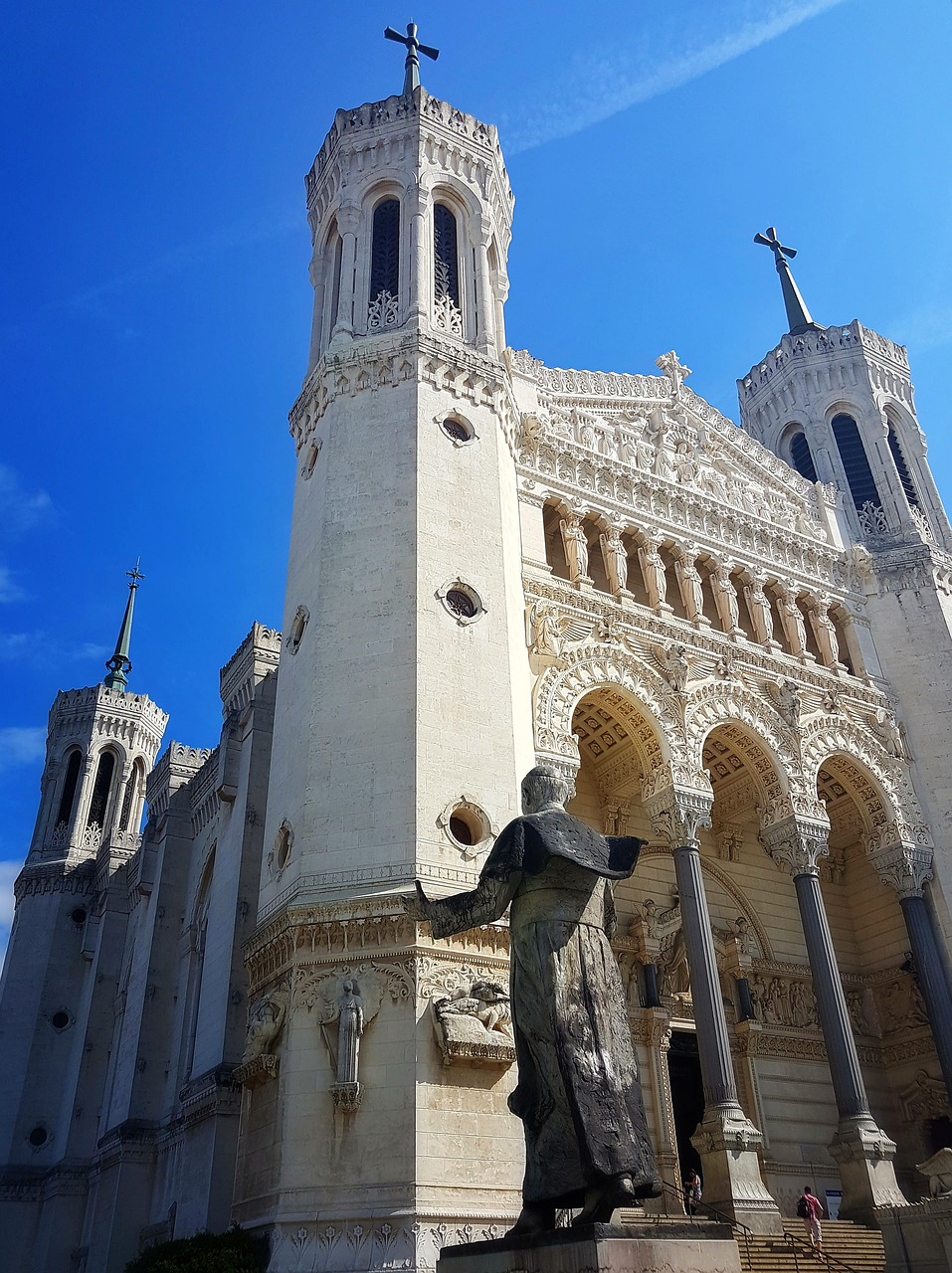

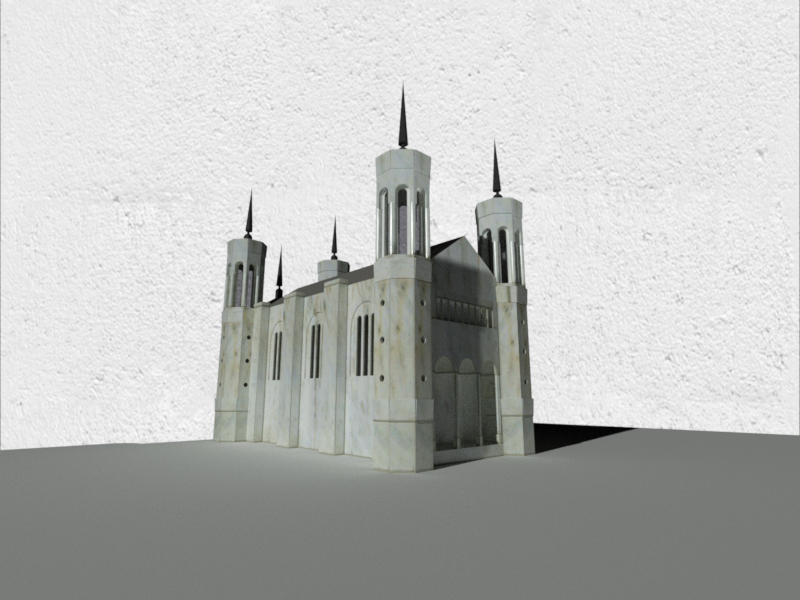

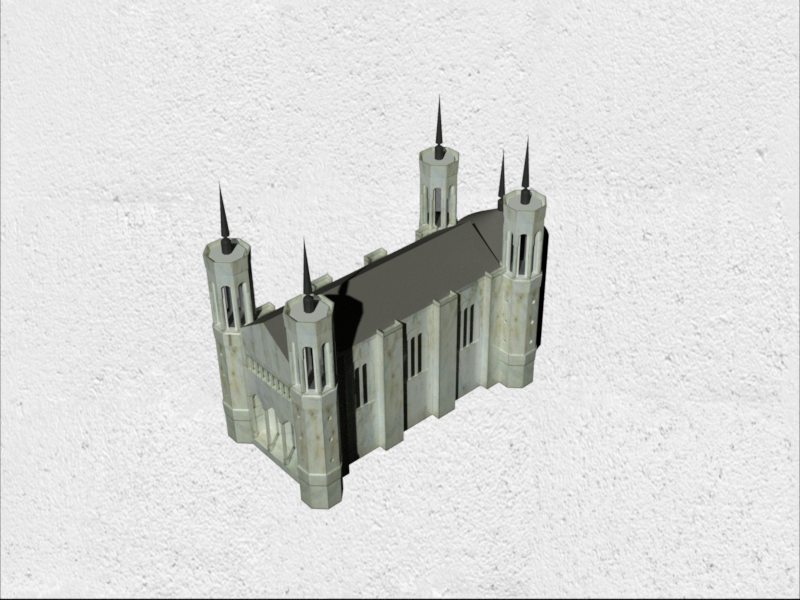

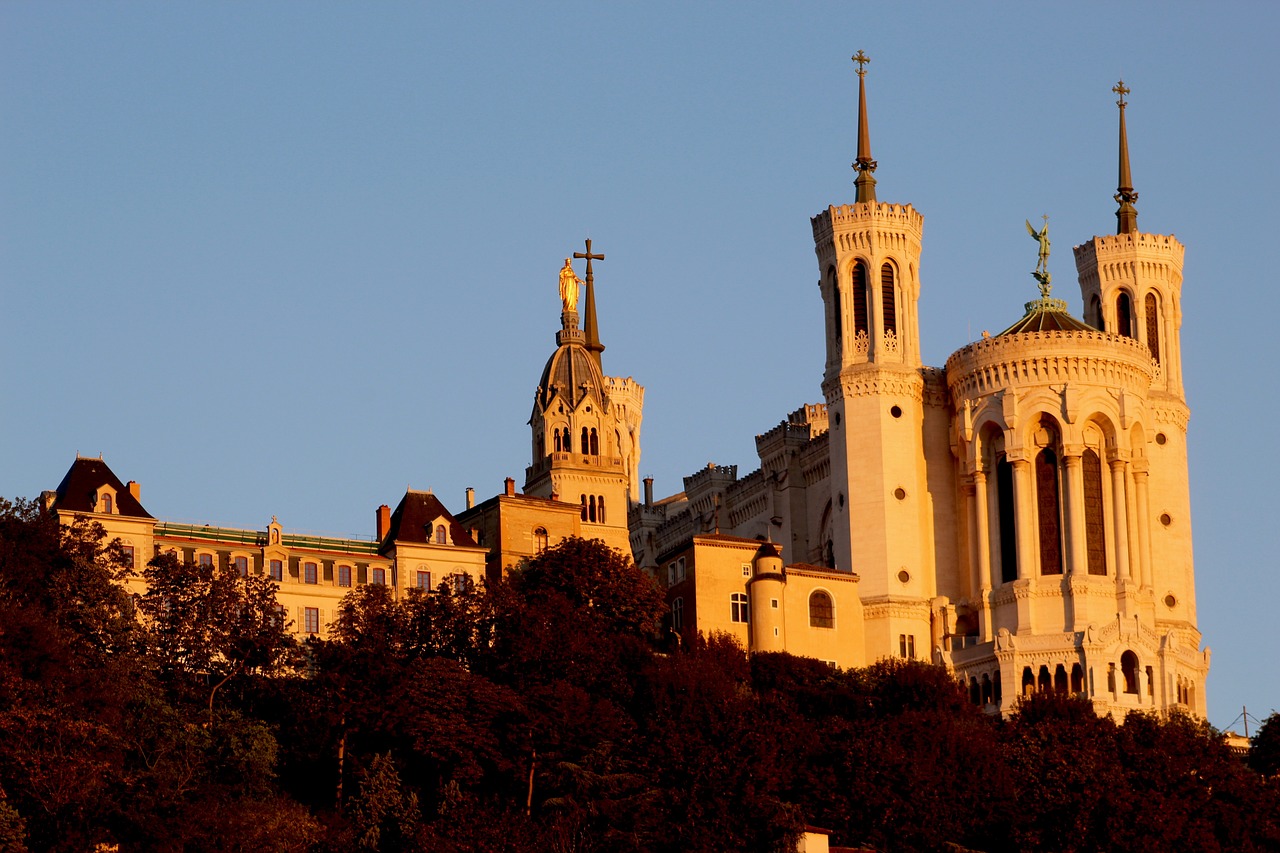

Notre-Dame de Fourviere is a basilica dedicated to Virgin Mary built at the end of the 19th century in Lyon, France. The main styles are Byzantine and Romanesque. It is interesting to study in particular thanks to the towers.

Pictures

[PICTURE]  [PICTURE]
