Constructive CAD CE • Modeling in AutoCAD

  BMEEPAG0249 • elective course • 2022-23-2

Dukay Benedek

Simple Model

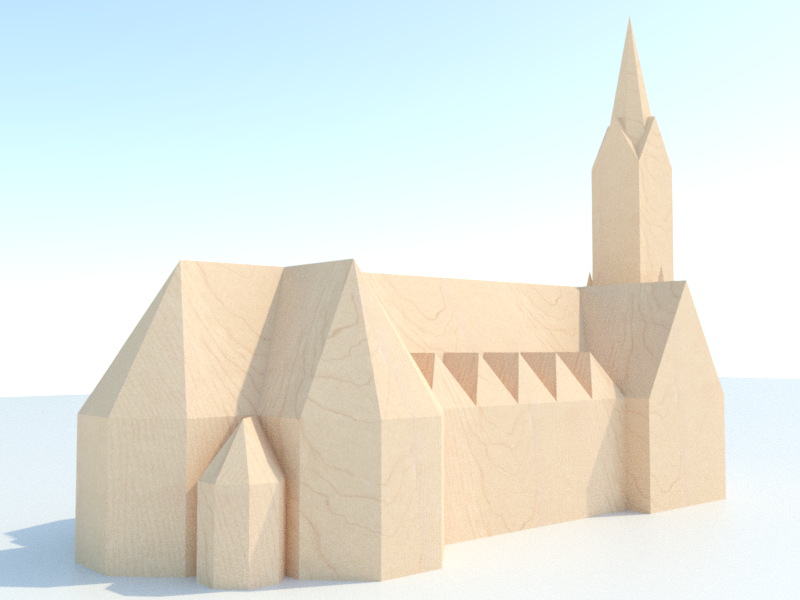

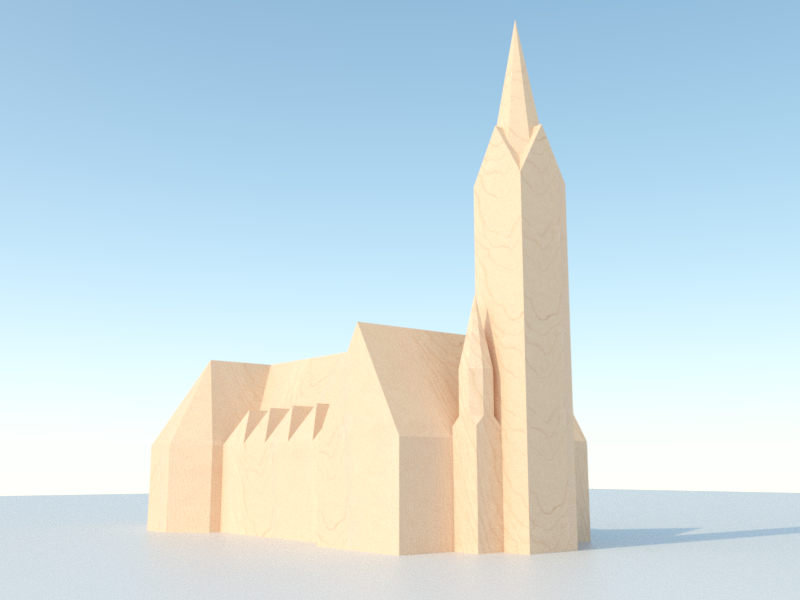

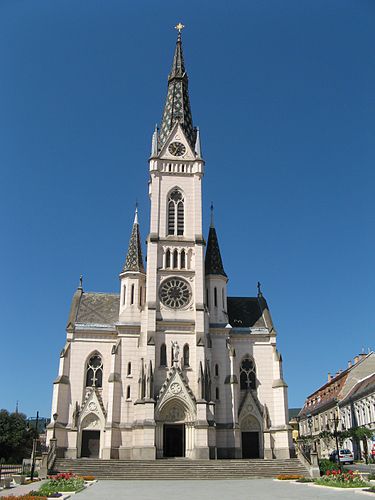

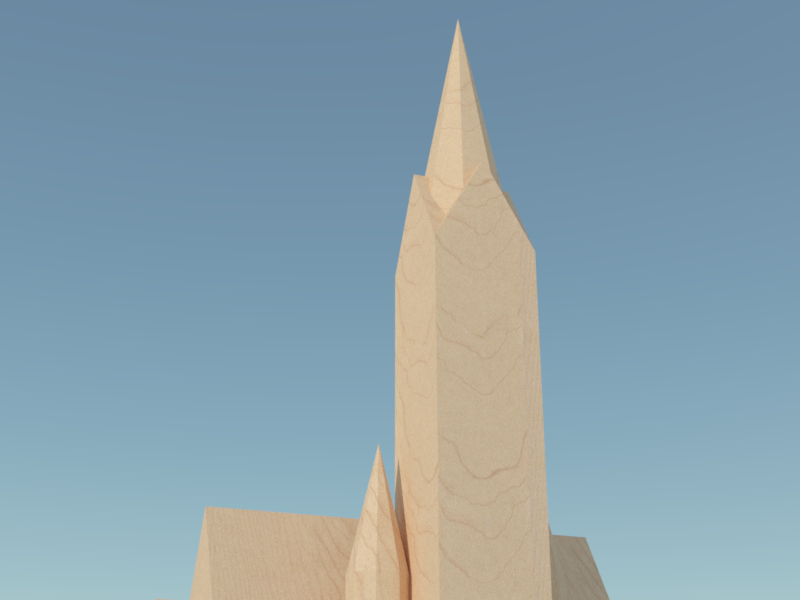

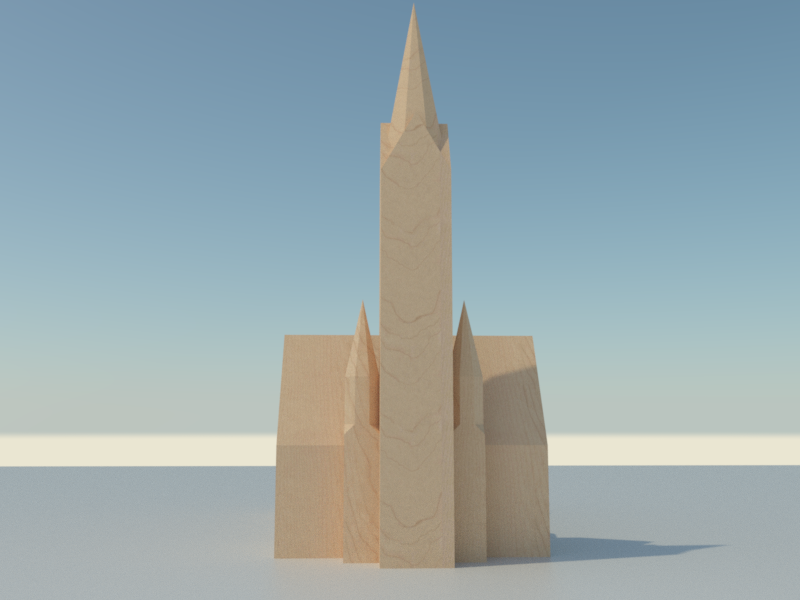

Jézus Szíve templom is a Roman Catholic church in Koszeg. It was bulit in a neo-Gothic style 1892-1894. The floor plan and it's vaults are typical to the gothic style, with three naves and thin and tall pillars. The building got a simple look from outside with white walls, but a really decorativ painting in the interior. The most iconic part of the building is it's tower, which is 57 meters tall which has two small towers on it's sides, which is also typical in the neo-Gothic style.

Pictures



Complex Model

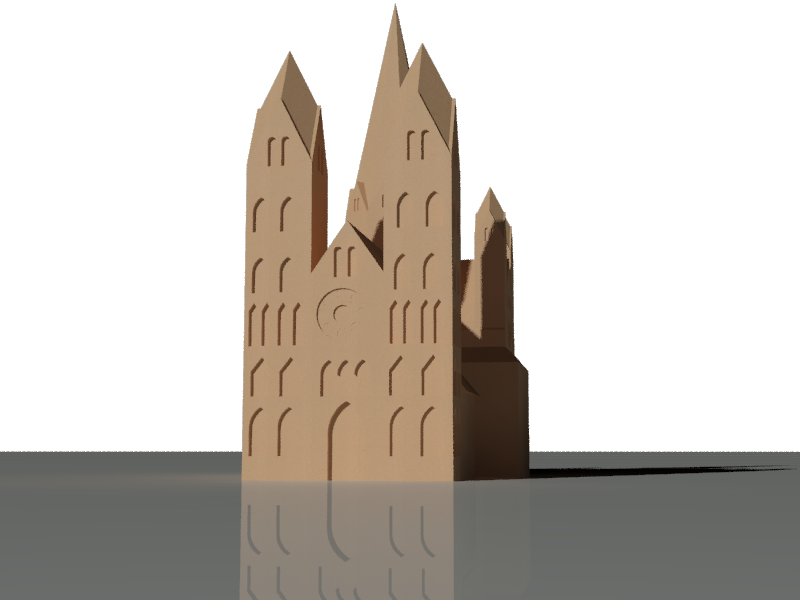

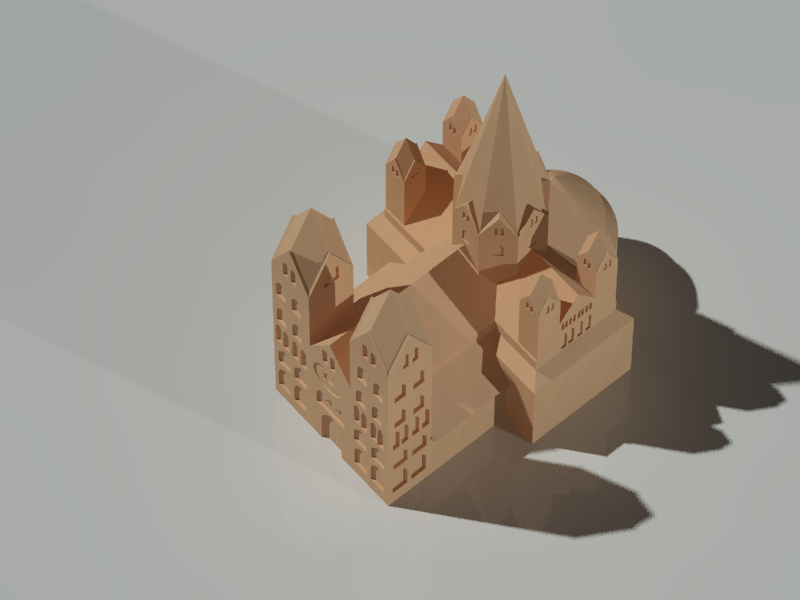

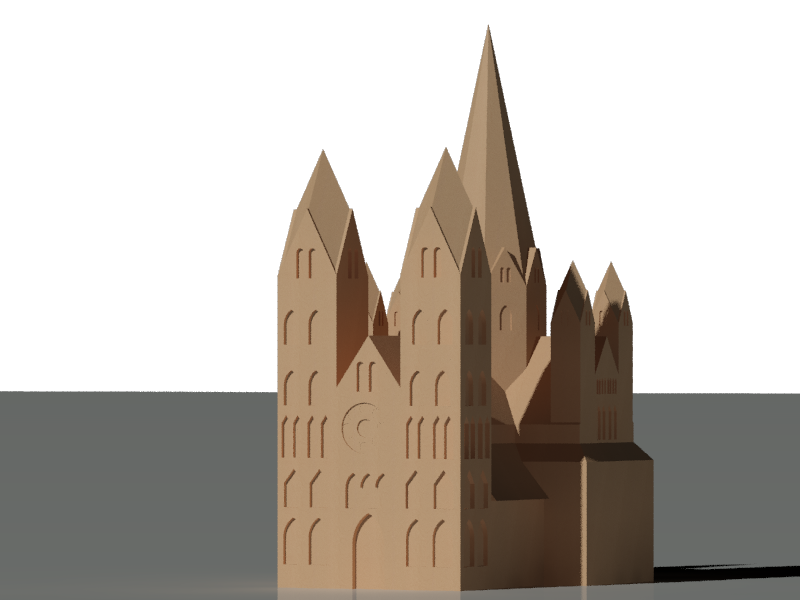

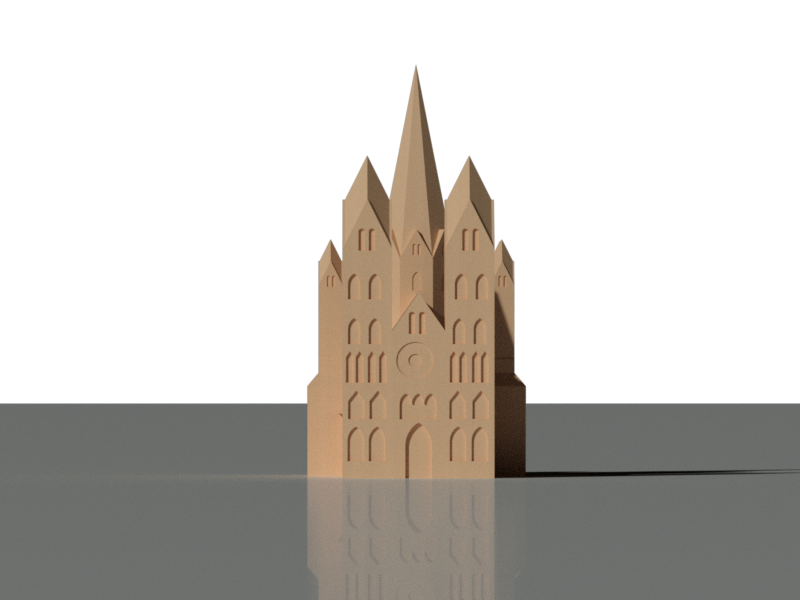

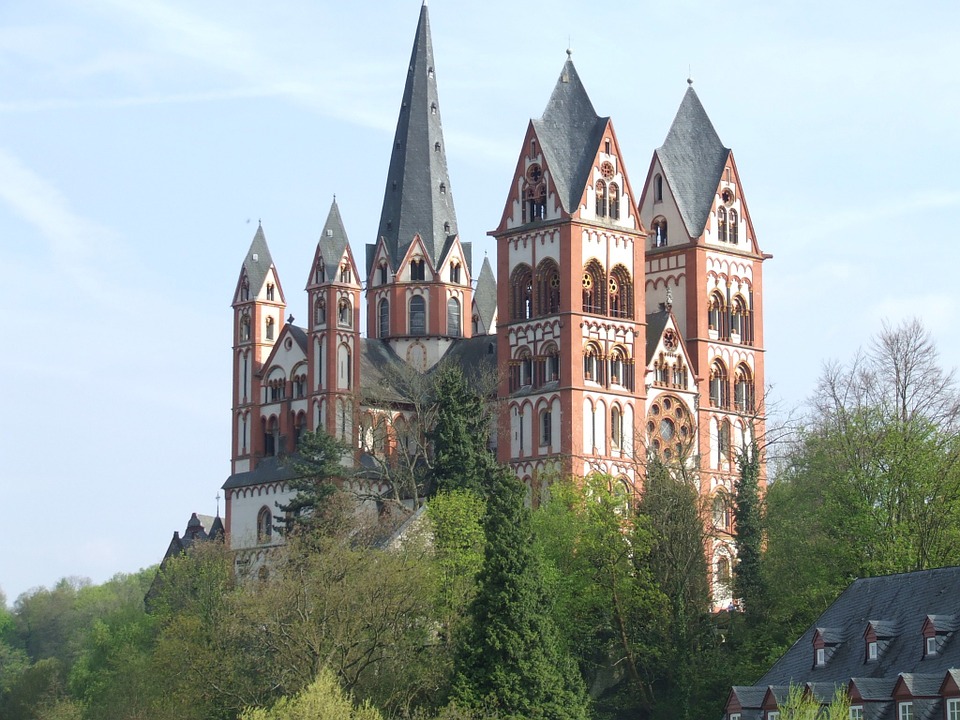

Limburg Cathedral (German: Limburger Dom), also known as Georgsdom ("George's Cathedral") after its dedication to Saint George, is located above the old town of Limburg in Hesse, Germany. It is the cathedral of the Catholic Diocese of Limburg. Its high location on a rock above the river Lahn provides its visibility from far away. It is the result of an Early Gothic modernization of an originally Early Romanesque building and therefore shows a Romanesque-Gothic transitional style.

Pictures
